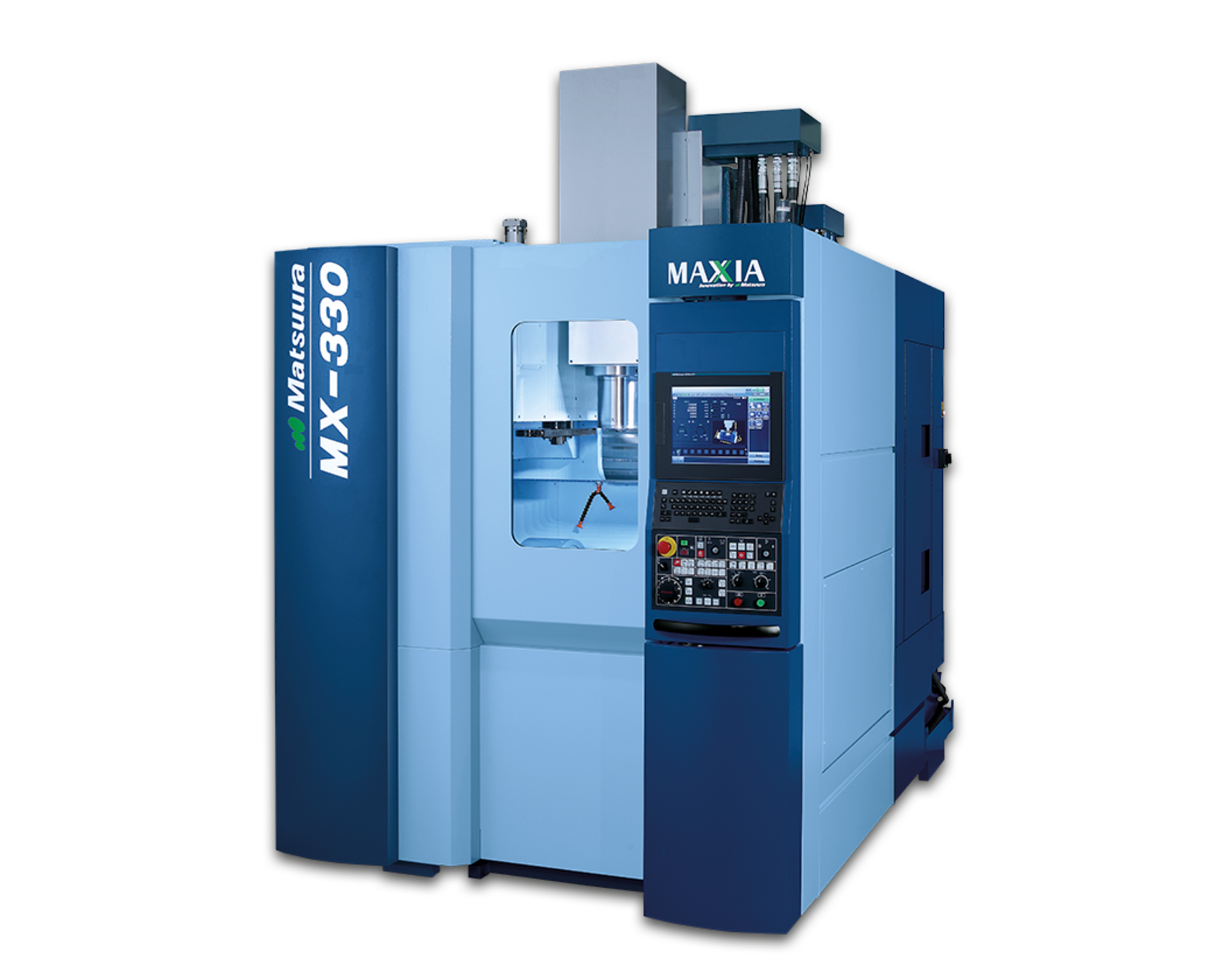

MATSUURA MX-330

5-Axis Vertical Machining Center

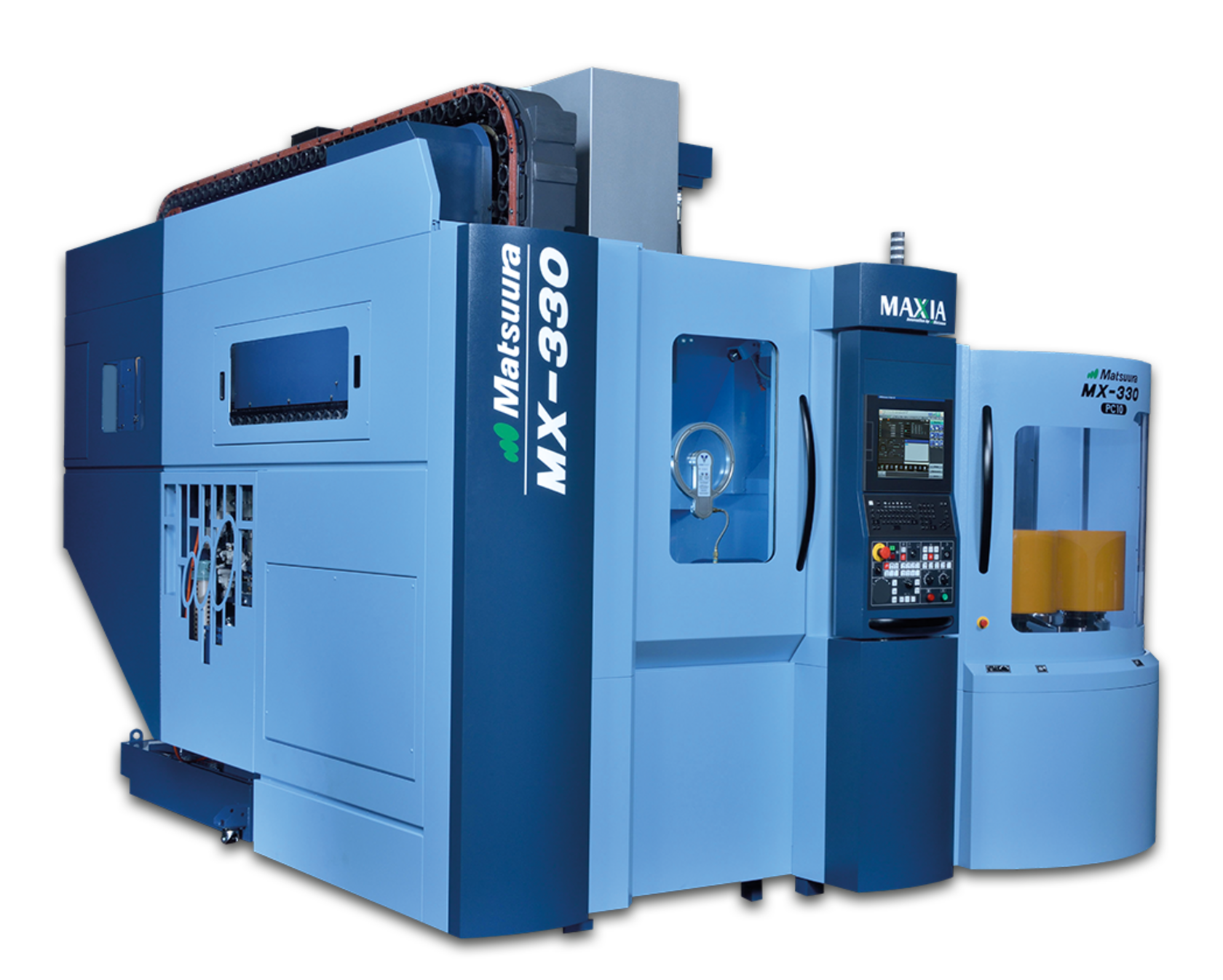

With the MX-330, MATSUURA's outstanding 5-axis automation becomes possible for all budgets. The equipment with a floor pallet system (PC10), in connection with the tool magazine with 90 tool positions, makes the MX-330 a reliable partner for low-manned production. Processes workpieces with a maximum size of Ø 420 x H 300 mm and a weight of up to 80 kg.

Contact back to Overview

Segments

WerkzeugeWerkzeuge
Luft- und RaumfahrtLuft- und Raumfahrt
MaschinenbauMaschinenbau
Werkzeug/FormenbauWerkzeug/Formenbau

Characteristics

  • "Entry-level machine" for 5-axis machining and automation
  • flexible and well suited for a wide variety of tasks
  • wide range of automation options
  • simple low-manned production
  • easy handling
  • just-in-time production
show allhide all

NC System

 FANUCG-Tech 31 iB

Movement & Ranges

X-Axis435 mm
Y-Axis465 mm
Z-Axis560 mm
A-Axis+10° ~ -125°
C-Axis360°

Table / Pallets

Number of Pallets10
Max. Work Size130 mm
Loading Capacity per Pallet80 kg
Max. Work Piece SizeØ 420 mm x H 300 mm

Rapid Traverse

X-Axis40/40 m/min
Y-Axis40/40 m/min
Z-Axis40/40 m/min
A-Axis17 min-1
C-Axis33 min-1

Spindle

Spindle Speed50 ~ 15.000 min-1
Spindle Motor Power5,5 / 7,5 kW
Max. Spindle Torque65,1 Nm / 1.100 min-1

Tools

Tool HolderSK40 / BT40 / HSK63
Number of Tools30 - 90

Downloads

MX-330.pdf 815 KB

Individual solutions

Are you looking for an individual option that fits your ideas and requirements perfectly? Then get in touch with us. Together we will find a solution.
