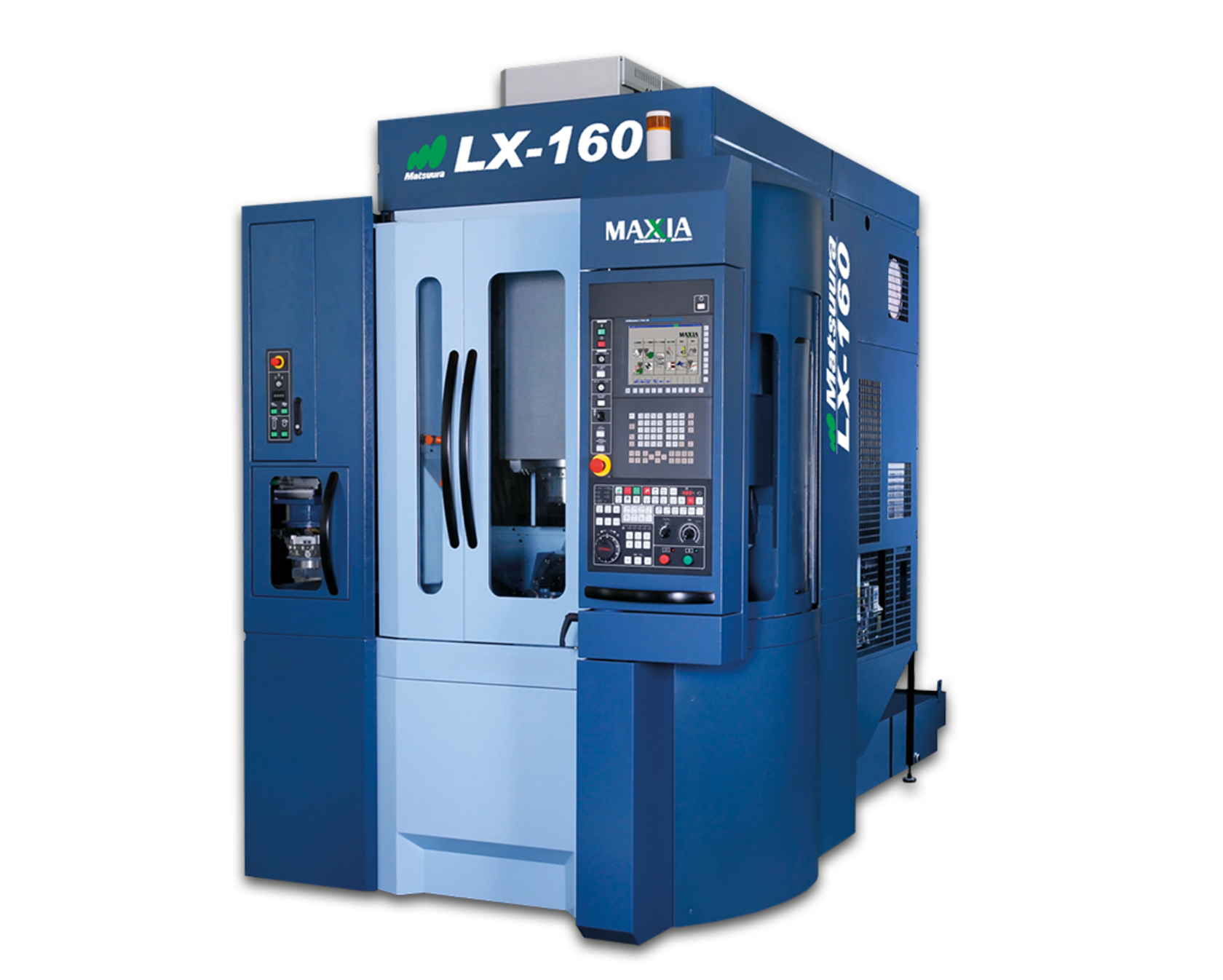

MATSUURA LX-160

5-Axis Vertical Machining Center

5 axes ensure maximum dynamics and reduced cycle times. The LX-160 is a machine that is optimally matched to linear motor technology. High speed, high accuracy and optimized machining performance are delivered with the state-of-the-art LX-160.

Segments

Feinmechanik/OptikFeinmechanik/Optik
MedizintechnikMedizintechnik

Characteristics

  • high-precision HSC machining
  • flexible
  • unmanned production
  • very good finishes
  • high variant production

NC System

 FANUCG-Tech 31 iB

Movement & Ranges

X-Axis500 mm
Y-Axis250 mm
Z-Axis300 mm
A-Axis+125° ~ -125°
B-Axis360°

Rapid Traverse

X-Axis90/90 m/min
Y-Axis90/90 m/min
Z-Axis90/90 m/min
A-Axis100 min-1
B-Axis200 min-1

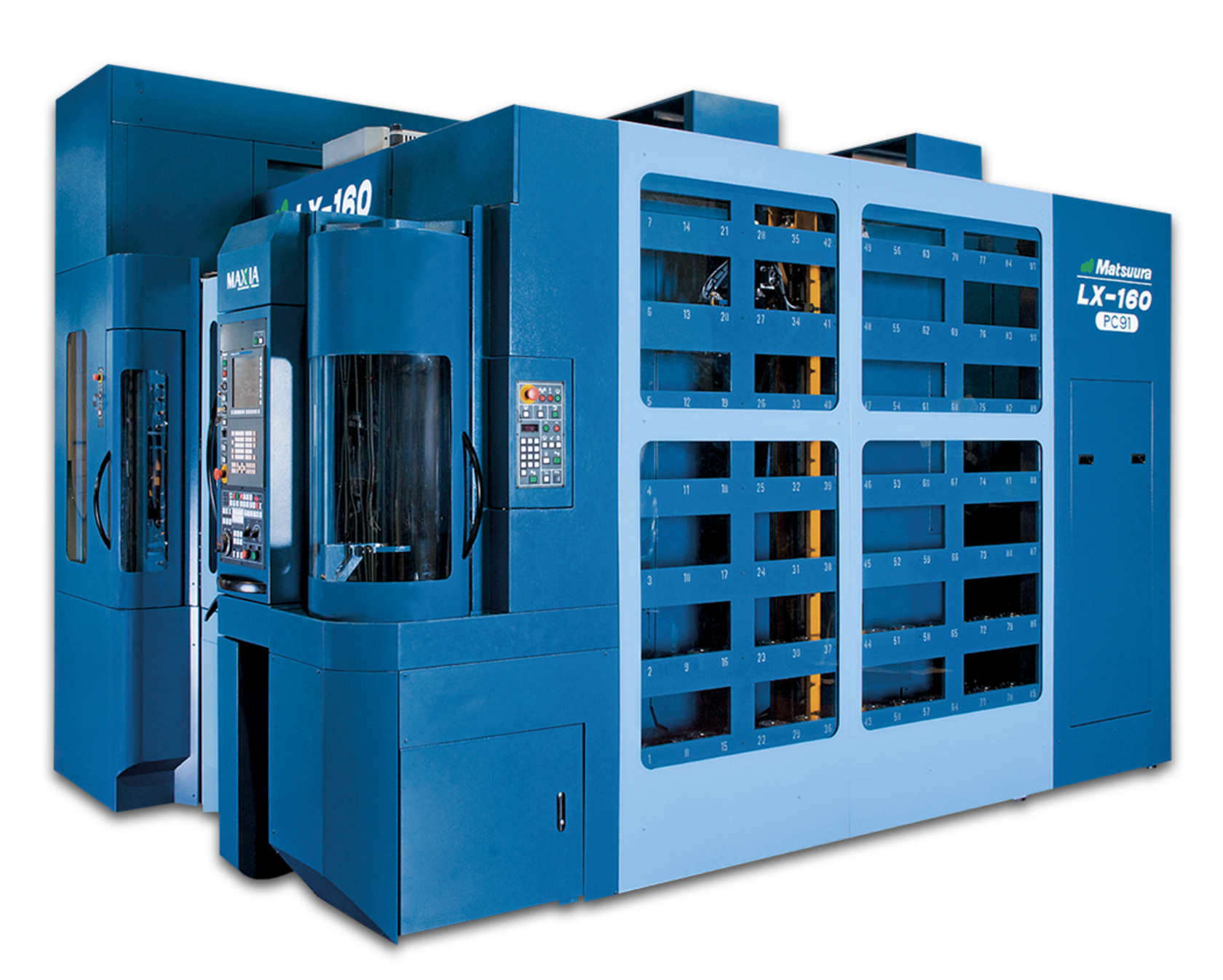

Pallets

Number of Pallets2 / 42 / 91
Pallet SizeØ 100 mm
Loading Capacity per Pallet20 kg
Max. Work Piece SizeØ 160 x H 230 mm

Spindle

Spindle Speed400 ~ 46.000 min-1
Spindle Motor Power15 / 22 kW
Max. Spindle Torque8,68 Nm / 16.500 min-1

Tools

Tool HolderBT30 / SK30 / HSK40
Number of Tools10 - 338

Downloads

LX-160.pdf 1 MB

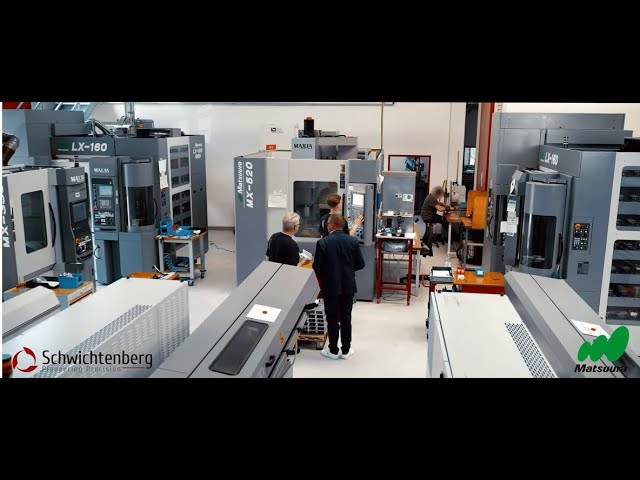

Kundenvideo #1 Schwichtenberg GmbH

Individual solutions

Are you looking for an individual option that fits your ideas and requirements perfectly? Then get in touch with us. Together we will find a solution.



Contact
