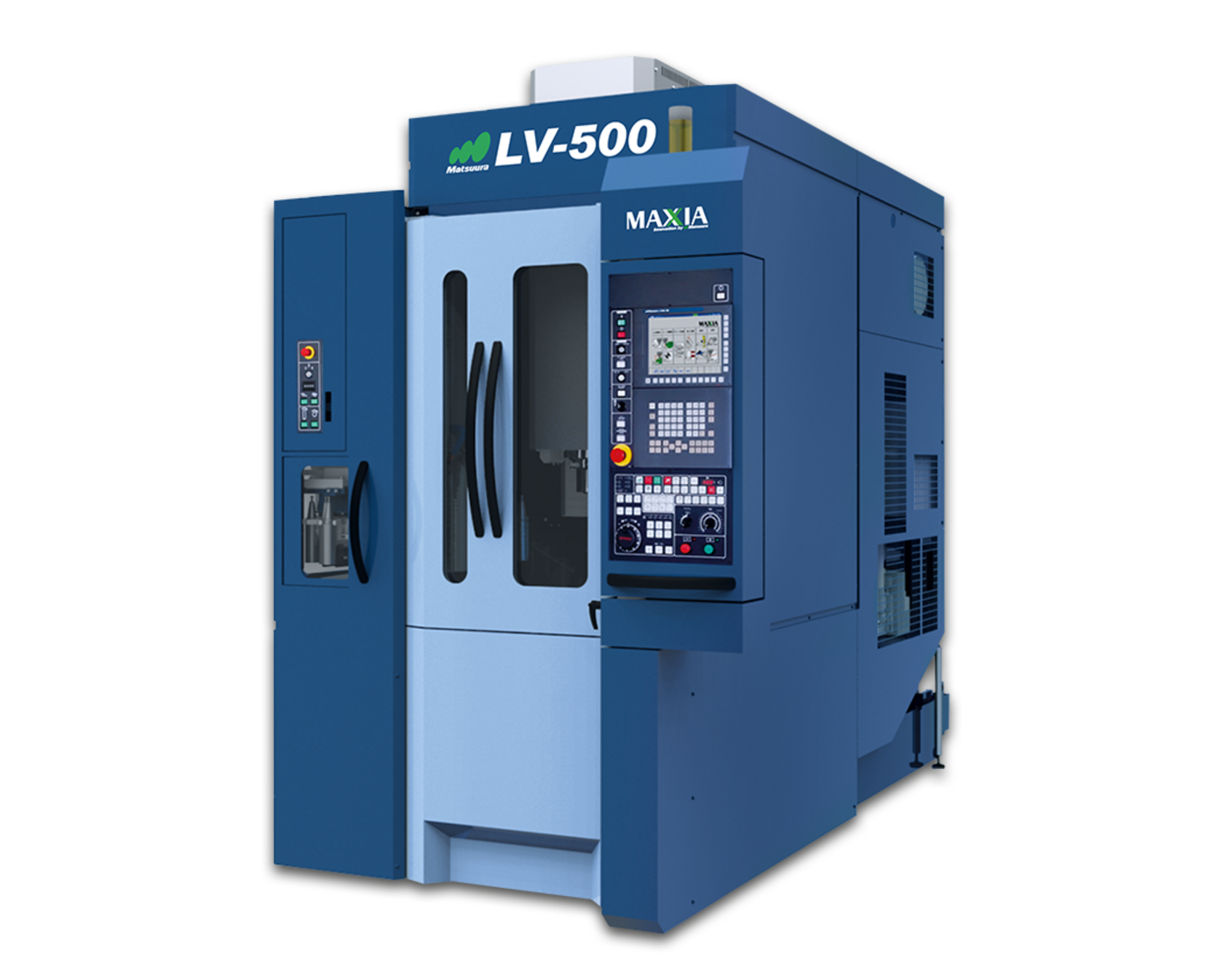

MATSUURA LV-500

Vertical Machining Center

For the ultra-fast and high-precision machining of smaller workpieces with linear motor technology in all three axis. The machines of the L-series are ideally suited for the ultra-fast processing of complicated 3D contours with high accuracy and excellent surfaces with the shortest cycle times.

Contact back to Overview

Segments

Feinmechanik/OptikFeinmechanik/Optik
MedizintechnikMedizintechnik

Characteristics

  • high-precision in High Speed Cutting
  • flexible
  • unmanned production
  • very good finishes and surfaces
  • high variant production
show allhide all

NC System

 FANUCL-Tech 31 iB

Movement & Ranges

X-Axis500 mm
Y-Axis350 mm
Z-Axis300 mm

Rapid Traverse

X-Axis90/90 m/min
Y-Axis90/90 m/min
Z-Axis90/90 m/min

Pallets

Number of Pallets2 / 42 / 91
Working SurfaceØ 100 mm
Loading Capacity per Pallet20 kg
Max. Work SizeØ 160 x H 230 mm

Table

Working Surface540 x 350 mm
Max. Loading Capacity100 kg

Space Requirements/ Weight

Height x width x depthH 2.646 x W 2.700 x D 5.500
Weightca. 5.500 kg

Spindle

Spindle Speed400 ~ 46.000 min-1
Spindle Motor Power7,5 / 15 kW
Max. Spindle Torque8,68 Nm / 15.000 min-1

Tools

Tool HolderBT30 / SK30
Number or Tools10 - 50

Downloads

LV-500.pdf 882 KB

Individual solutions

Are you looking for an individual option that fits your ideas and requirements perfectly? Then get in touch with us. Together we will find a solution.
