DyeMansion Powerfuse S

Additive Manufacturing

The DyeMansion Powerfuse S is the sustainable and industrial vapor polishing system for sealed surfaces. By using VaporFuse Eco Fluid solvents, the system is also approved for processing plastics that come into contact with food. The VaporFuse surfacing seals the surfaces of the additively manufactured parts and makes them washable.

Segments

Pneumatik/HydraulikPneumatik/Hydraulik
Additive ManufacturingAdditive Manufacturing
Luft- und RaumfahrtLuft- und Raumfahrt
Werkzeug/FormenbauWerkzeug/Formenbau
Feinmechanik/OptikFeinmechanik/Optik
MedizintechnikMedizintechnik

Characteristics

  • Sustainable VaporFuse Eco Fluid solvent is approved according to Regulation (EU) 10/2011 for the processing of plastics with food contact
  • new areas of application in the food and beverage industry
  • contact-free process without chemical waste, thanks to the circulation of the solvent in a closed circuit
  • sealed surfaces - inside and outside
  • reduced friction and increased stability
  • washable surfaces

Technical specifications

Performance

Process chamber volume

Basket Dimension (L x W x H)



129 l

610 x 340 x 315 mm

Dimensions System (L x W x H)

Automatic Loading

Manual Loading

1.700 x 1.700 x 2.090 mm

960 x 3.466 x 1.300 mm

705 x 1.700 x 850 mm

Weight System

Weight Automatic Loading

Weight Manual Loading

1.600 kg

800 kg

180 kg

Power Output14,1 kW
Compressed Air Consumptionapprox. 70 l at 6 bar per run

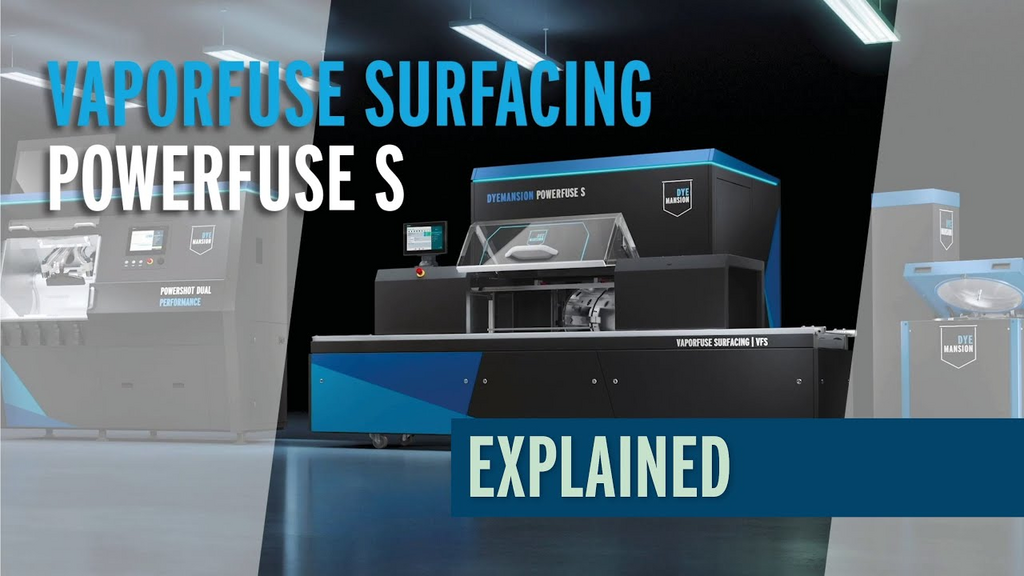

Explained: The Powerfuse S I the green & industrial vapor polishing system | DyeMansion

Individual solutions

Are you looking for an individual option that fits your ideas and requirements perfectly? Then get in touch with us. Together we will find a solution.



Contact
